RC Beam Opening Reinforcement

Project Overview

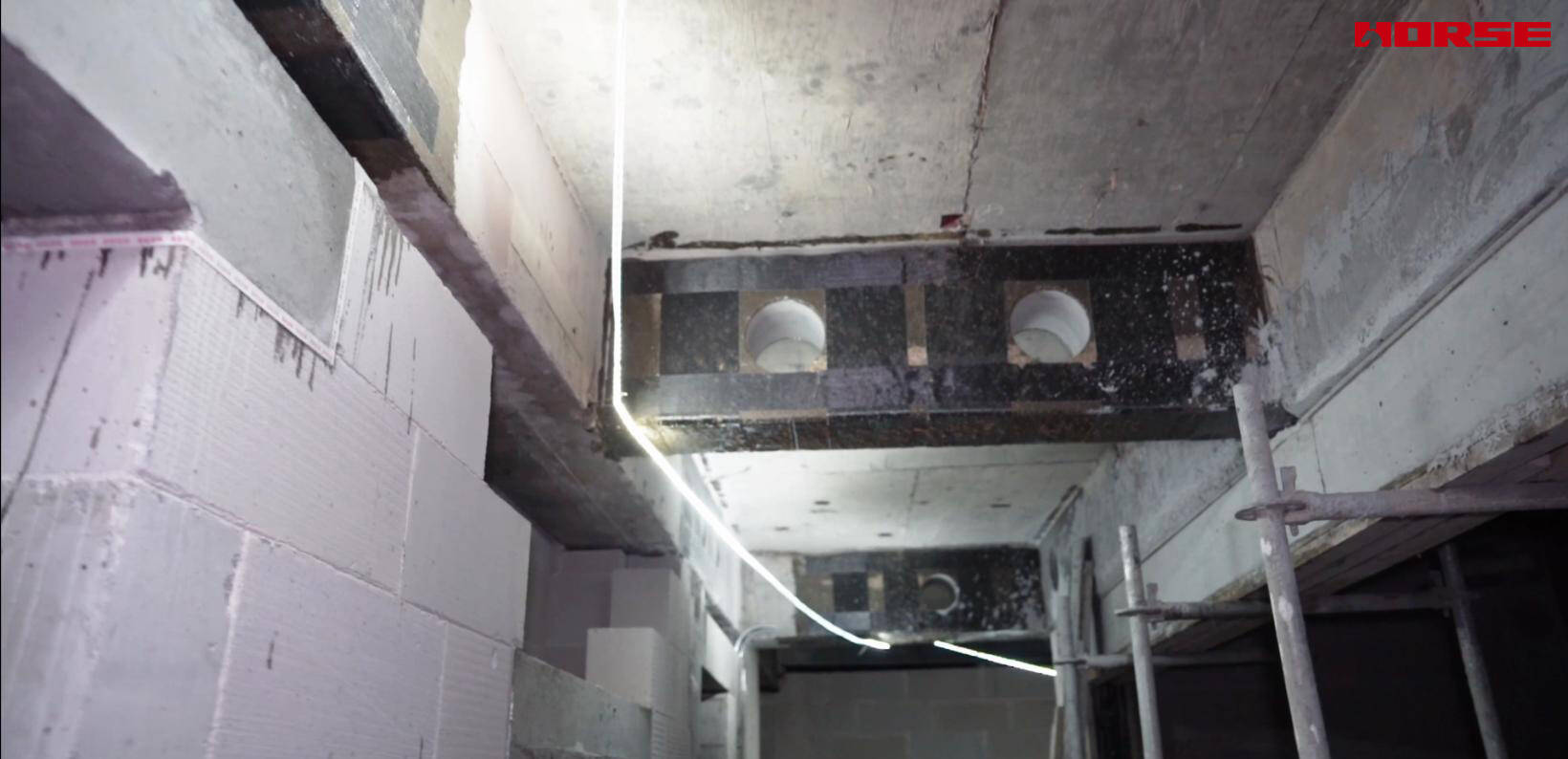

This project is a retrofitting work of an existing commercial high-rise building. To accommodate the upgrade of MEP (Mechanical, Electrical and Plumbing) services, multiple circular penetration holes were drilled on the original reinforced concrete frame beams.

Drilling holes on RC beams partially cuts off the original steel rebars and reduces the effective cross-sectional area of the beam, which significantly weakens the flexural and shear capacity and creates potential structural safety risks.

Strengthening Scheme

After structural calculation and verification, a CFRP (Carbon Fiber Reinforced Polymer Sheet) strengthening solution was adopted to reinforce the perforated beams. This method recovers and improves the load-bearing capacity without adding extra dead weight or occupying indoor clear height, complying with ACI 440 and local concrete strengthening codes.

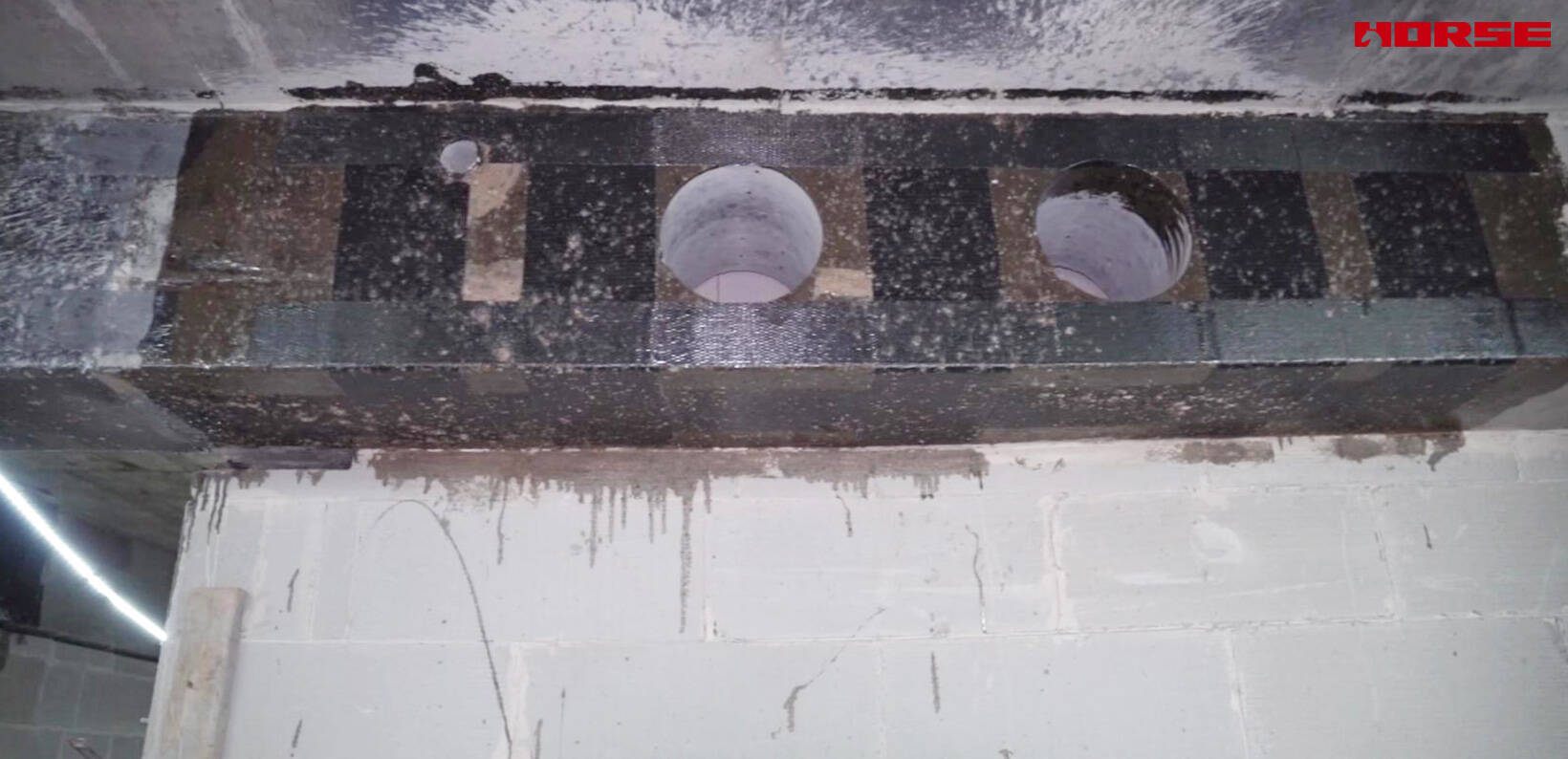

Unidirectional carbon fiber sheets are pasted at beam bottom for flexural strengthening. U-shaped CFRP wraps are applied on beam sides for shear strengthening around openings to restrain concrete and relieve stress concentration at hole edges.

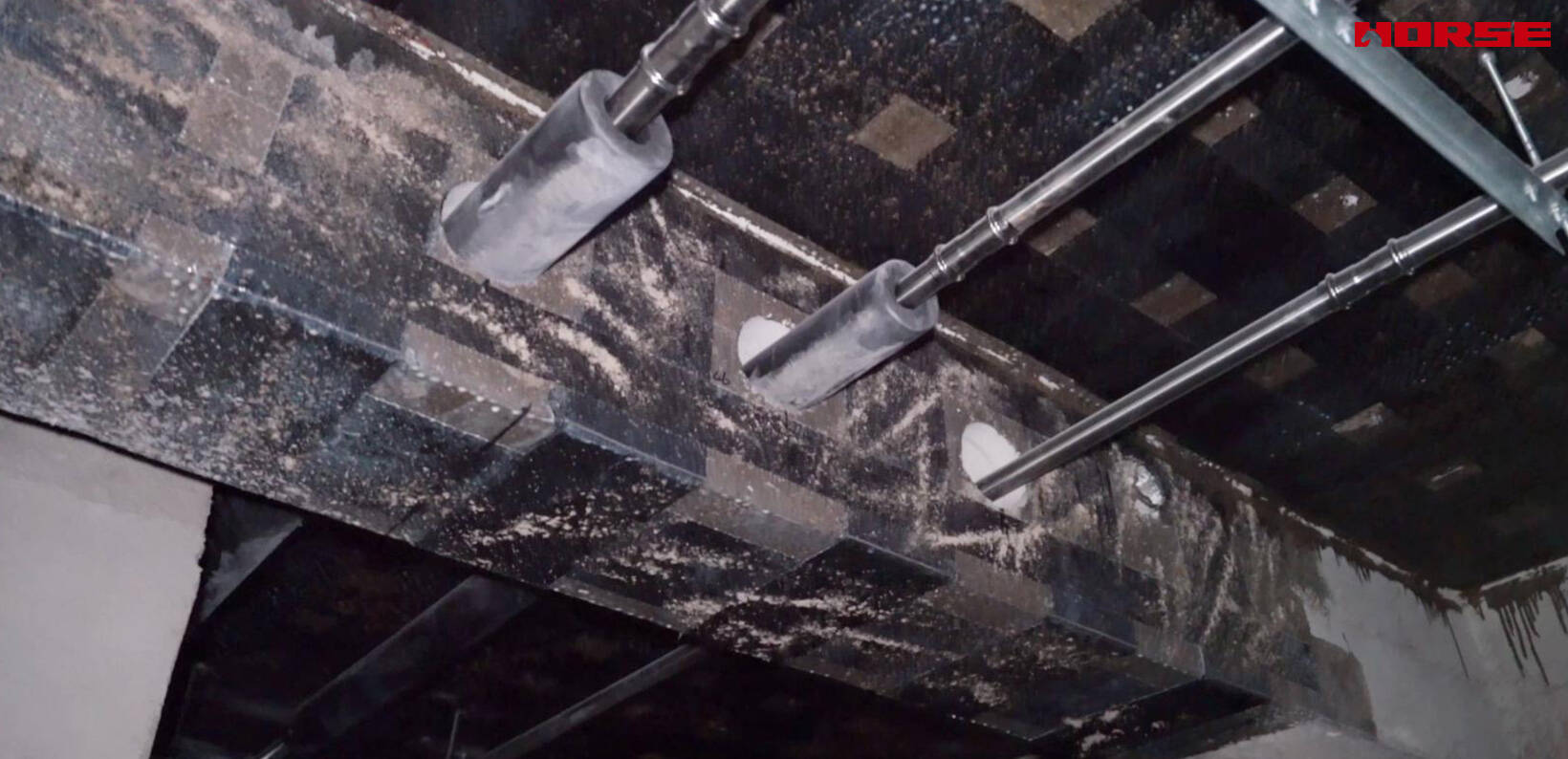

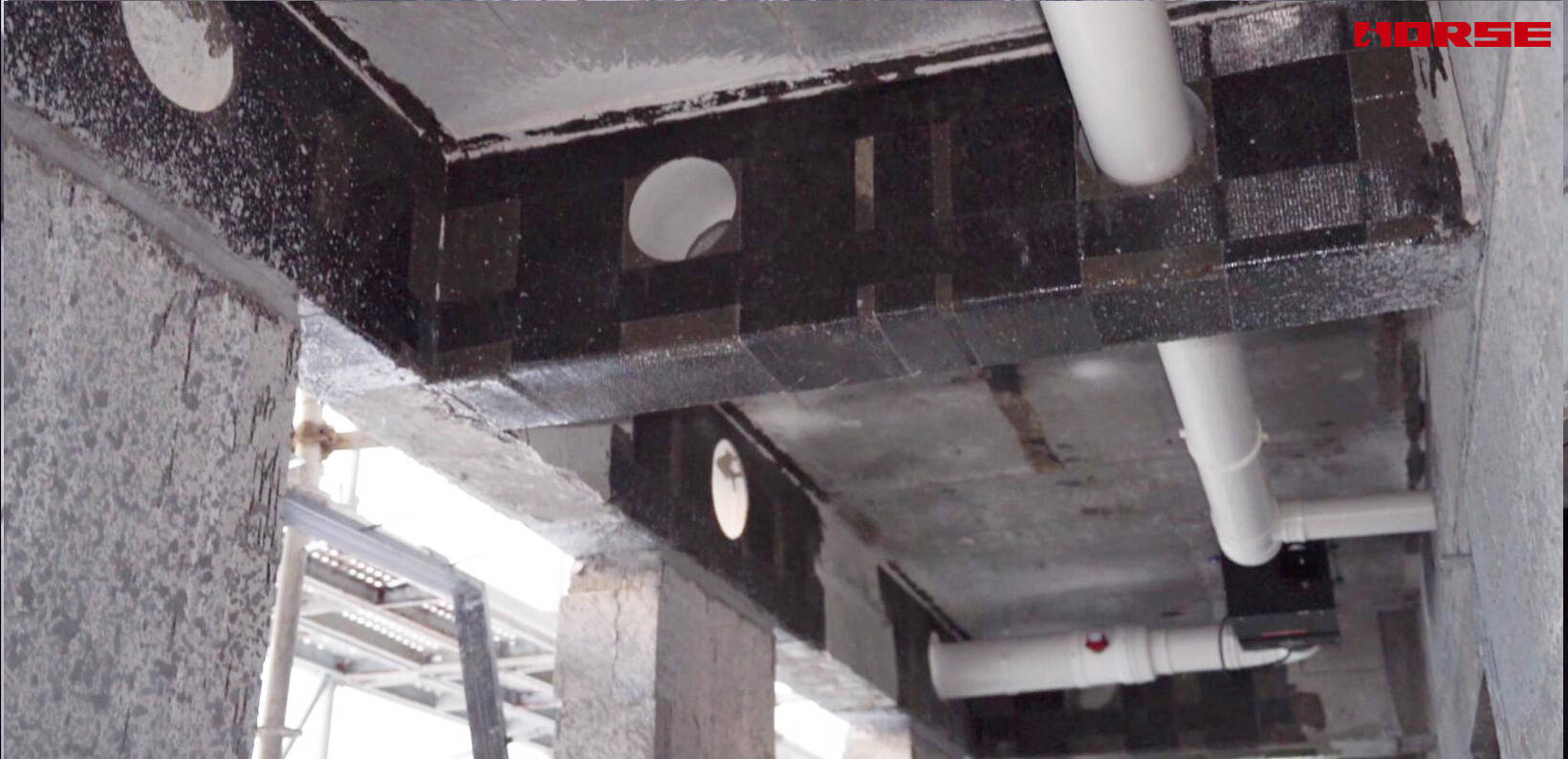

Longitudinal CFRP sheets run along the full beam length to resist bending moment. Additional U-shaped CFRP stirrups are arranged on both sides of openings, forming a composite strengthening system to compensate the loss of original stirrups and longitudinal steel.

Advantages & Project Outcome

✅ Lightweight, No Occupation of Clear Height: Carbon fiber sheets are ultra-thin, barely increasing beam dimension. Ideal for renovation projects with strict headroom requirement, superior to steel jacketing and section enlargement.

✅ High Strength & High Efficiency: High tensile strength of CFRP effectively compensates flexural and shear capacity loss caused by beam openings, restrains crack propagation.

✅ Convenient Installation: Works well in narrow space with dense pipes. No heavy construction equipment required, short construction period and minimum disruption to other trades on site.

✅ Superior Durability: Excellent corrosion and aging resistance, low maintenance cost during long-term service.

Application Scope

Retrofit of office & commercial buildings, RC frame beam/slab/wall opening reinforcement for HVAC, drainage, fire protection and other MEP pipe penetrations.
